The Integrated Hotel Guest Room Lock and Management System

Technical Features:

• Anti-Panic (Emergency Escape) Function: The lock allows instant door opening from the inside with a single handle press-even when deadbolted-without needing to unlock or use a card/key..

         This complies fully with emergency egress requirements in fire or crisis situations.

• Robust Internal Construction: Built with fire-rated stainless steel components meeting international fire safety standards.

2- Electronic Security & Encryption:

• Smart Card Technology: Compatible with MIFARE® cards (industry-standard contactless RFID).
• Data Encryption: Secure protocols protect all data exchanged between cards, credentials, and the management system.
• Anti-Cloning & Intrusion Protection: Strong resistance to card duplication or code-cracking attempts.
• Audit Trail Logging: The lock maintains a detailed record of the most recent card accesses, including exact date, time, and card used for each entry.

• Ultra-Low Power Consumption: Standby current ≤ 20 μA, enabling up to one full year of reliable operation on standard batteries.
• Intelligent Low-Battery Alert: Audible and visual warnings when battery levels drop.
• Eco-Friendly Design: Free of hazardous substances, fully compliant with European RoHS and CE directives.

• Precise control over card validity periods (start date/time and expiration).
• Restriction to specific floors, buildings, or individual rooms.
• User-type classification (guest, staff, emergency, etc.).
• Comprehensive, tamper-proof audit trails capturing who accessed what, when, and how-for security reviews and incident investigations.

Hierarchical Card Permissions:

• Master Card: Opens every lock in the system without restriction, including those deadbolted from inside.
• Building Card: Limited to a specific building; does not override internal deadbolts; time-restricted validity.
• Floor Card: Restricted to one floor only; no override of deadbolts; time-limited.
• Housekeeper Card: Grants access to designated floors during scheduled cleaning shifts; cannot override deadbolts.
• Guest Card: Provides room access throughout the paid stay, plus authorized facility usage. If the guest engages the internal deadbolt, only a Master Card can override it.
• Lost Card Management: Instant invalidation of lost/stolen cards via simple programming=the lock automatically rejects them thereafter.
• Storage Capacity: Retains over 200 recent access records for forensic review if needed, supporting robust security oversight.

5- Aesthetic & Premium Design:

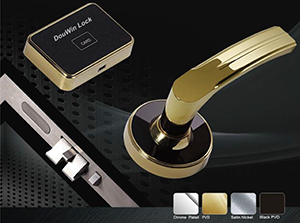

• Sleek, modern appearance that blends effortlessly with any interior style, Luxurious finish options: bright chrome, brushed nickel, PVD gold, and black PVD.
• Front panel in tempered glass or high-grade acrylic for a contemporary, upscale look.

7- Technical Specifications:

• Power Supply: 4 × AA alkaline batteries + emergency 9V battery port.
• Operating Temperature Range: –25°C to +65°C.
• Construction Materials: 304 stainless steel, die-cast zinc alloy, tempered glass.

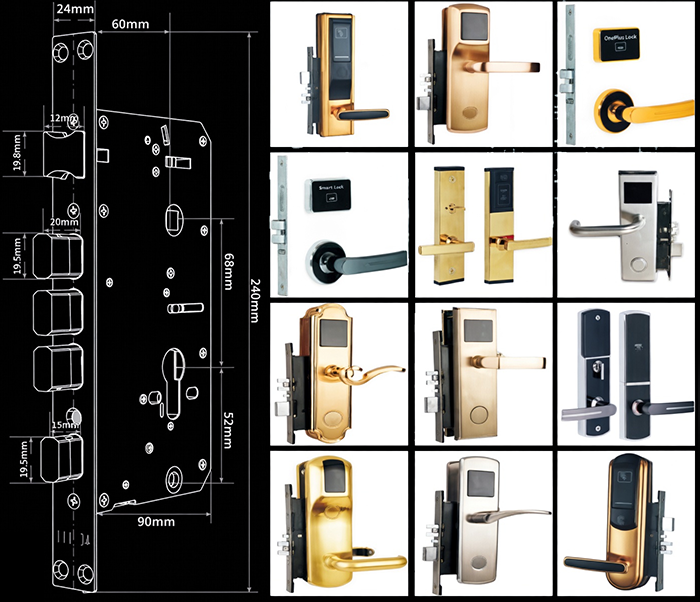

• Deadbolt Throw: 20 mm standard (select models offer 25.4 mm).
• Door Thickness Compatibility: 30-55 mm (up to 60 mm on certain models).
• Emergency Override: Mechanical key backup (or electronic, model-dependent) for battery failure scenarios.
• Internal Escape Mechanism: Pulling the inside handle automatically retracts both latch and deadbolt for rapid, unobstructed egress in emergencies.
• This system is engineered to elevate both guest peace of mind and operational efficiency while maintaining the highest standards of security, reliability, and elegance.
•
